CCdesign 1G/2G DSM 3" External Wastegate O2 Housing

CCdesign 1G/2G DSM 3" External Wastegate O2 Housing

Regular price £620.00 GBP
Regular price Sale price £620.00 GBP
Sale Sold out
Wastegate Flange
Downpipe Outlet Flange
Add new wastegate?

Fits 1G/2G FWD/AWD DSM 90-99 Eagle Talon TSI, 90-99 Mitsubishi Eclipse GST/GSX, 90-94 Plymouth Laser RS.

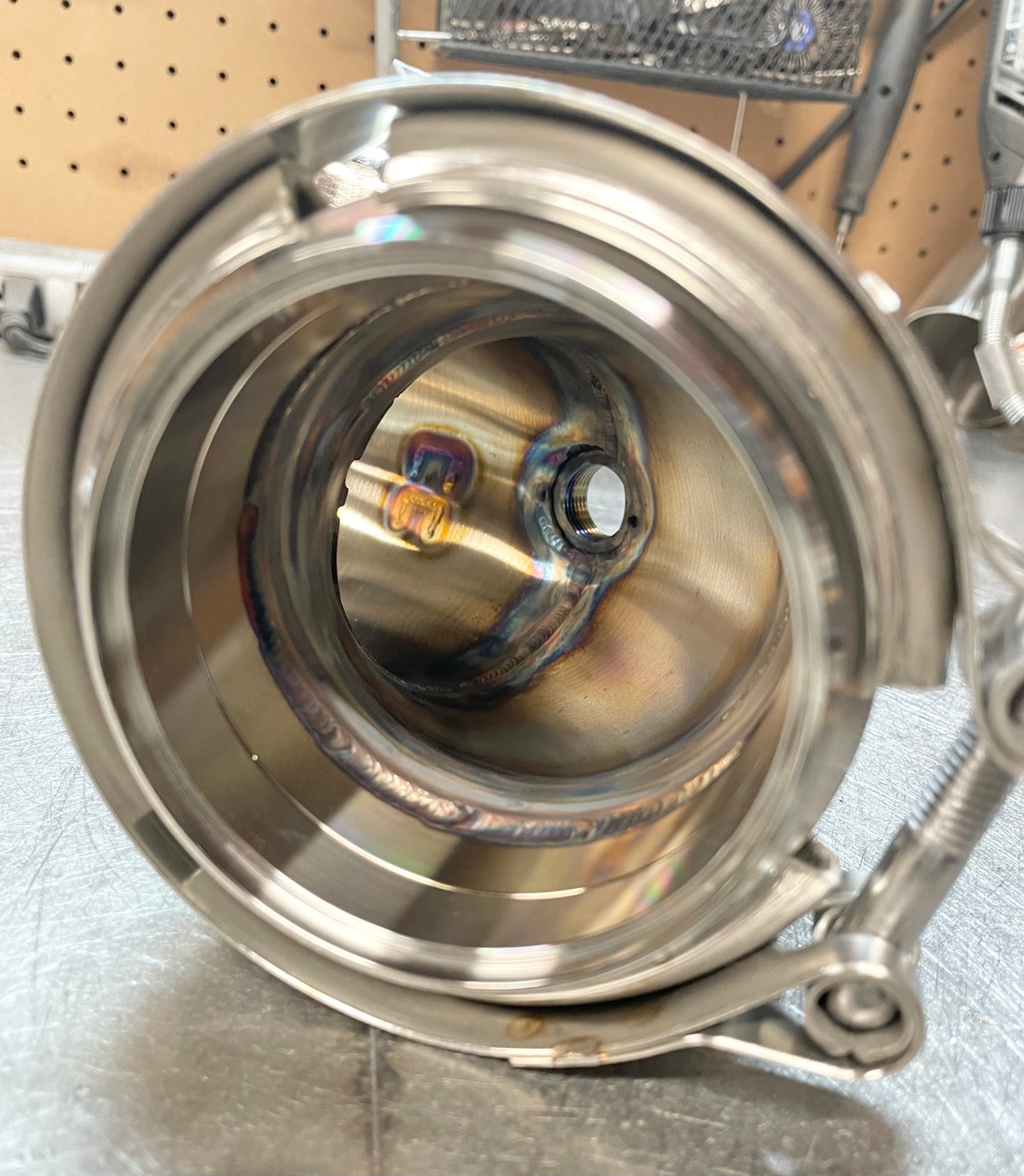

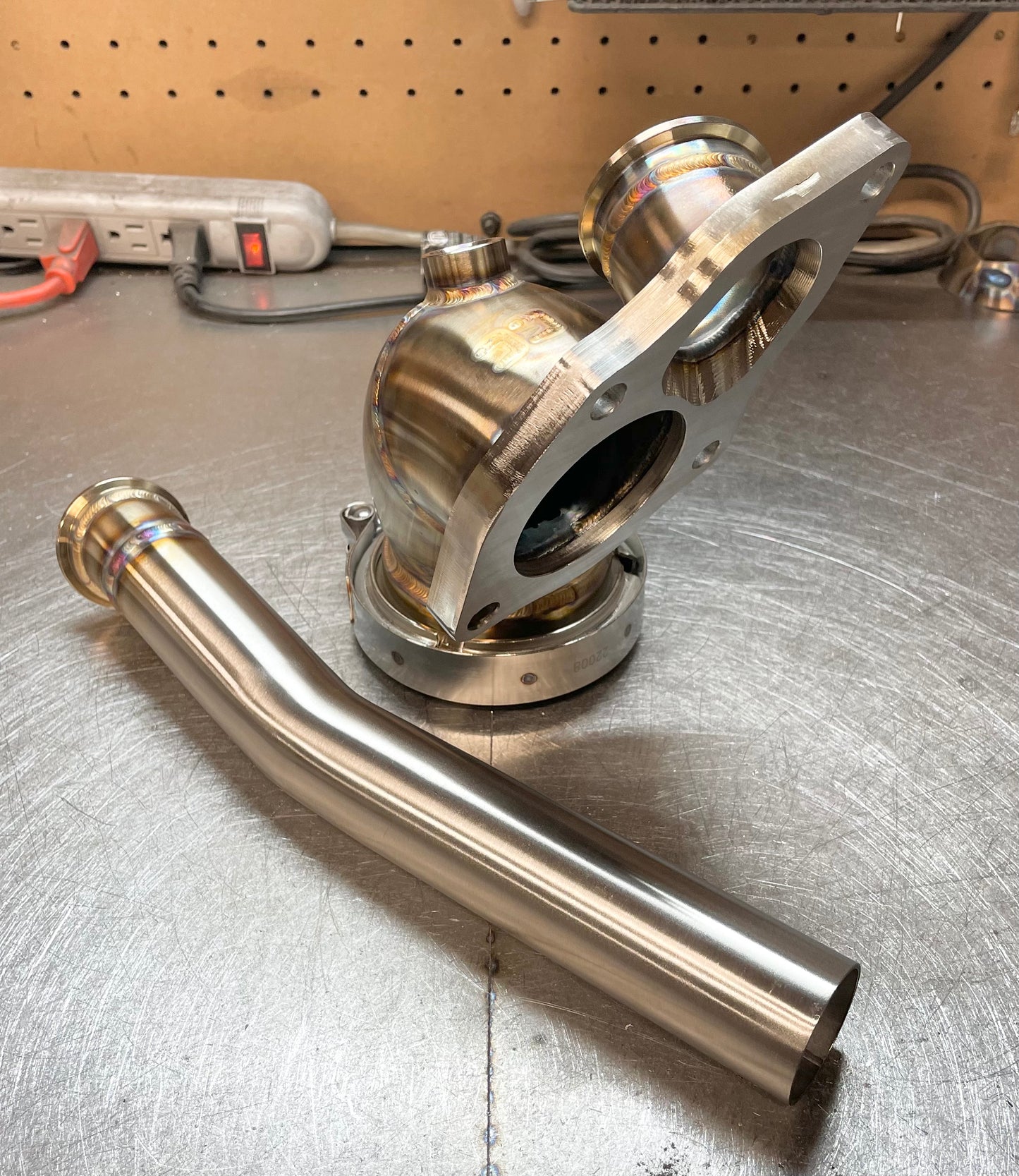

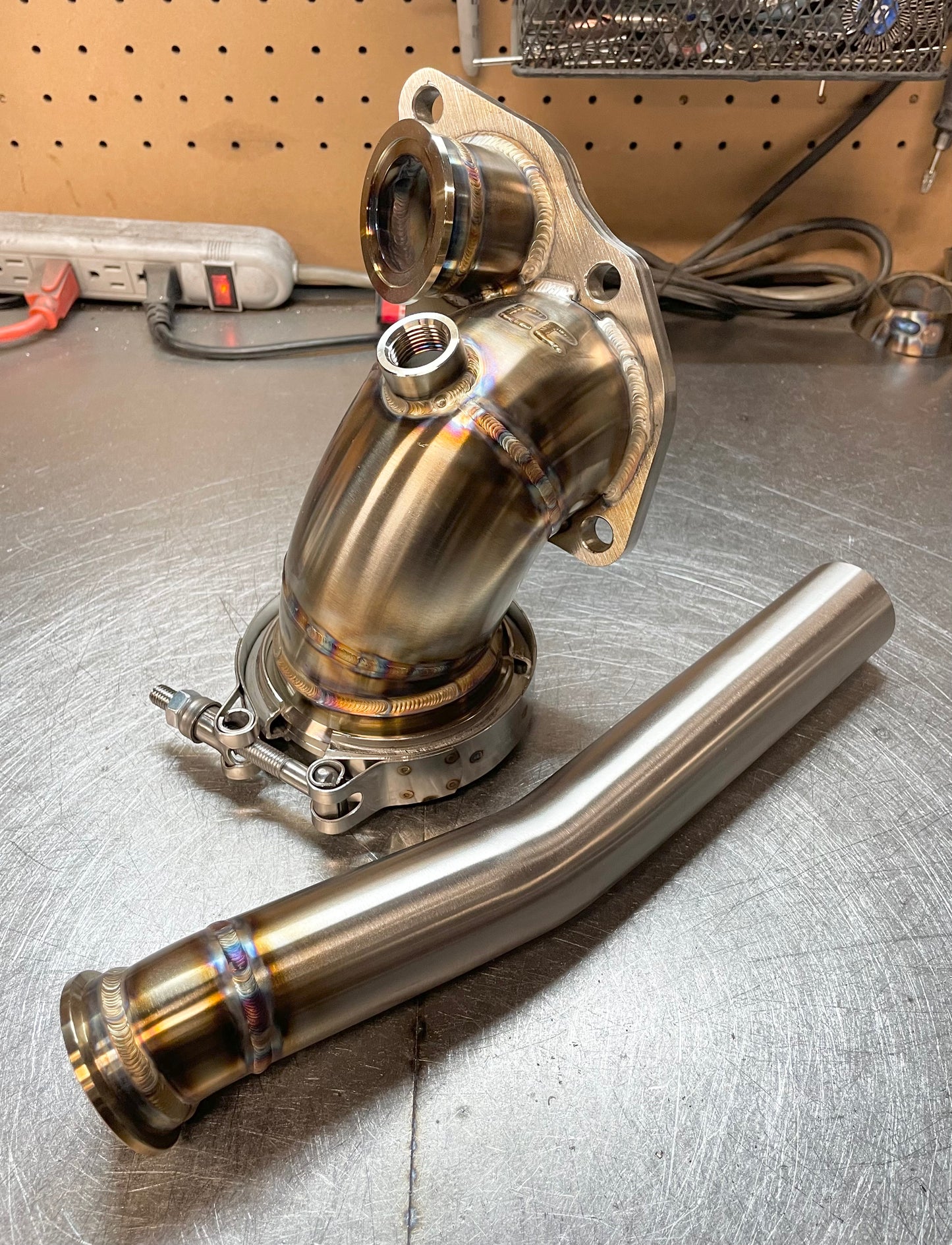

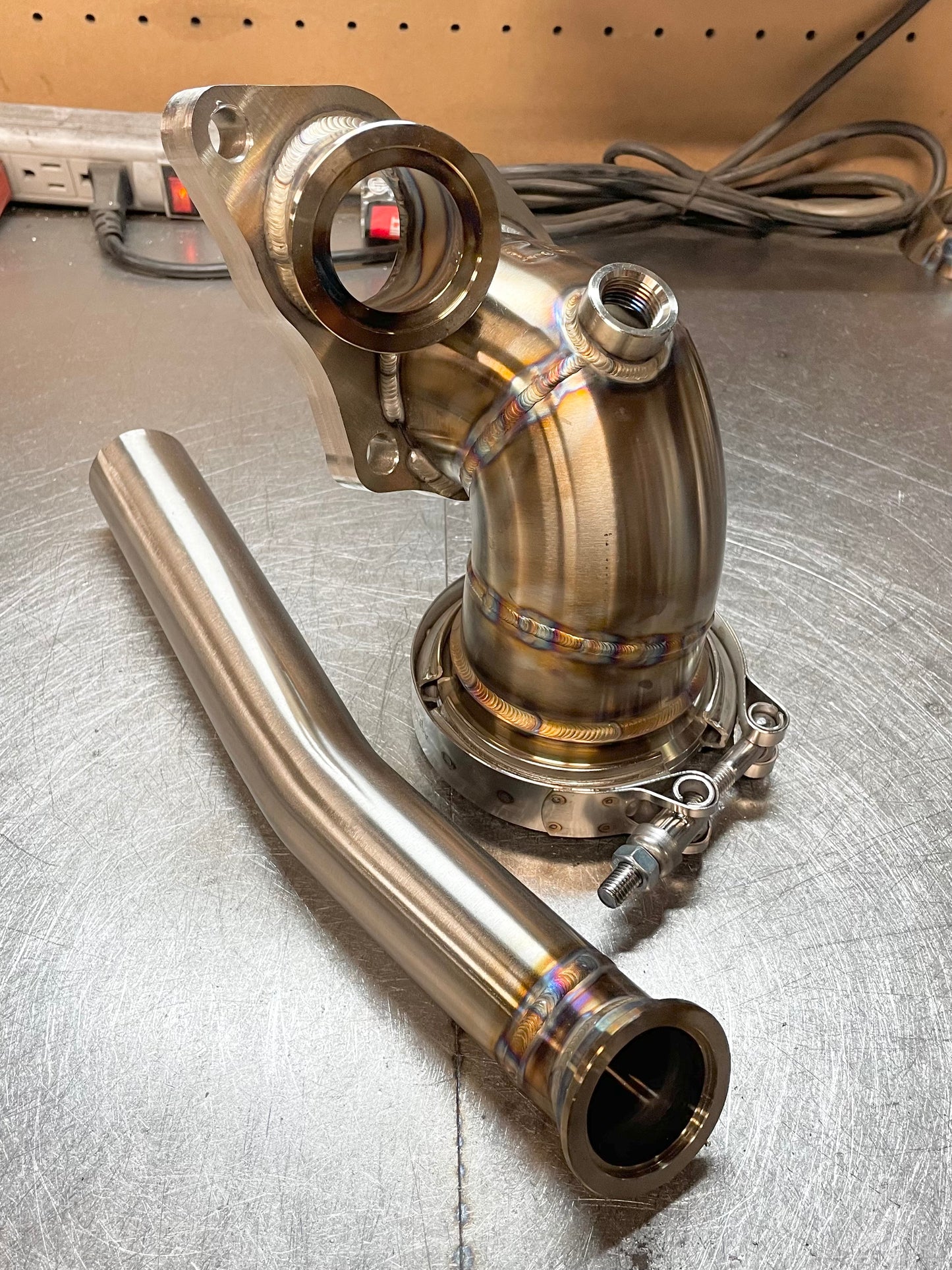

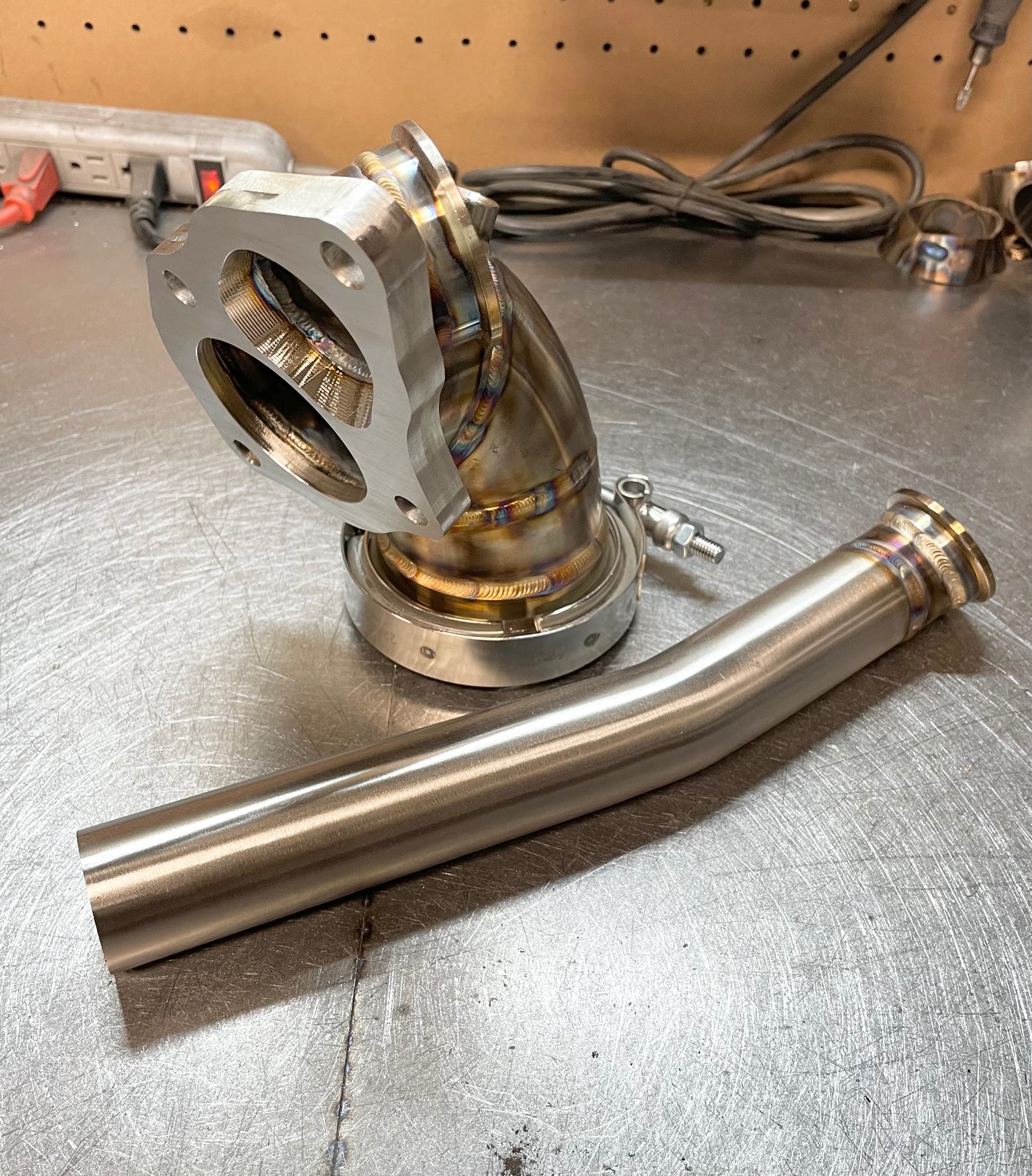

This O2 housing is a true 3" design all the way through.

Nothing like it on the market.

For use with turbos featuring a TD05 turbine housing (stock frame) and no internal wastegate.

Wastegate Provision is tapered to allow for optimal flow into the wastegate.

Wastegate flange will fit both TiAL MVS and Turbosmart Comp Gate.

Best paired with the larger framed bolt-on turbos to maximize power output.

Bolts in the factory location.

Made from 304SS.

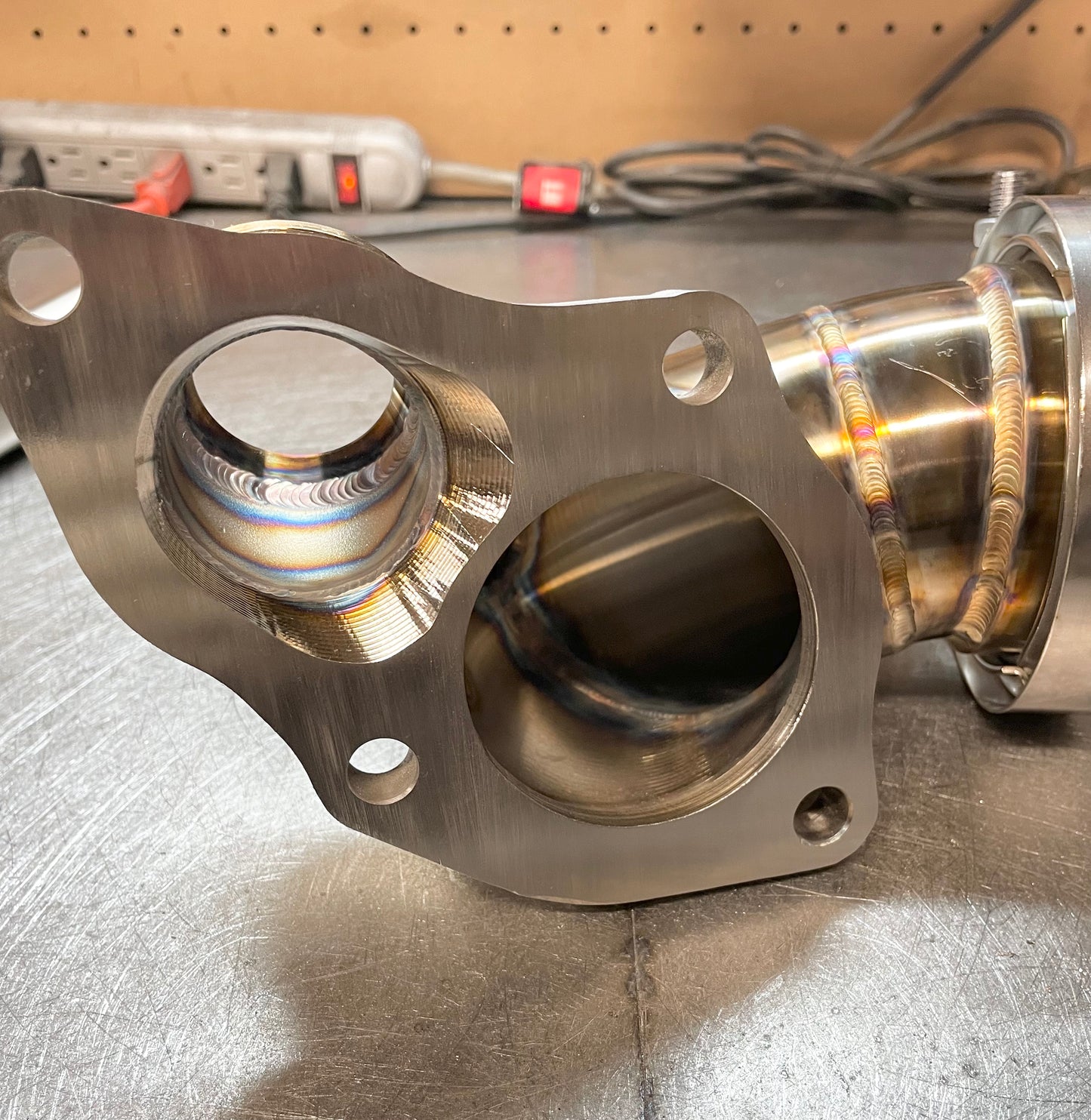

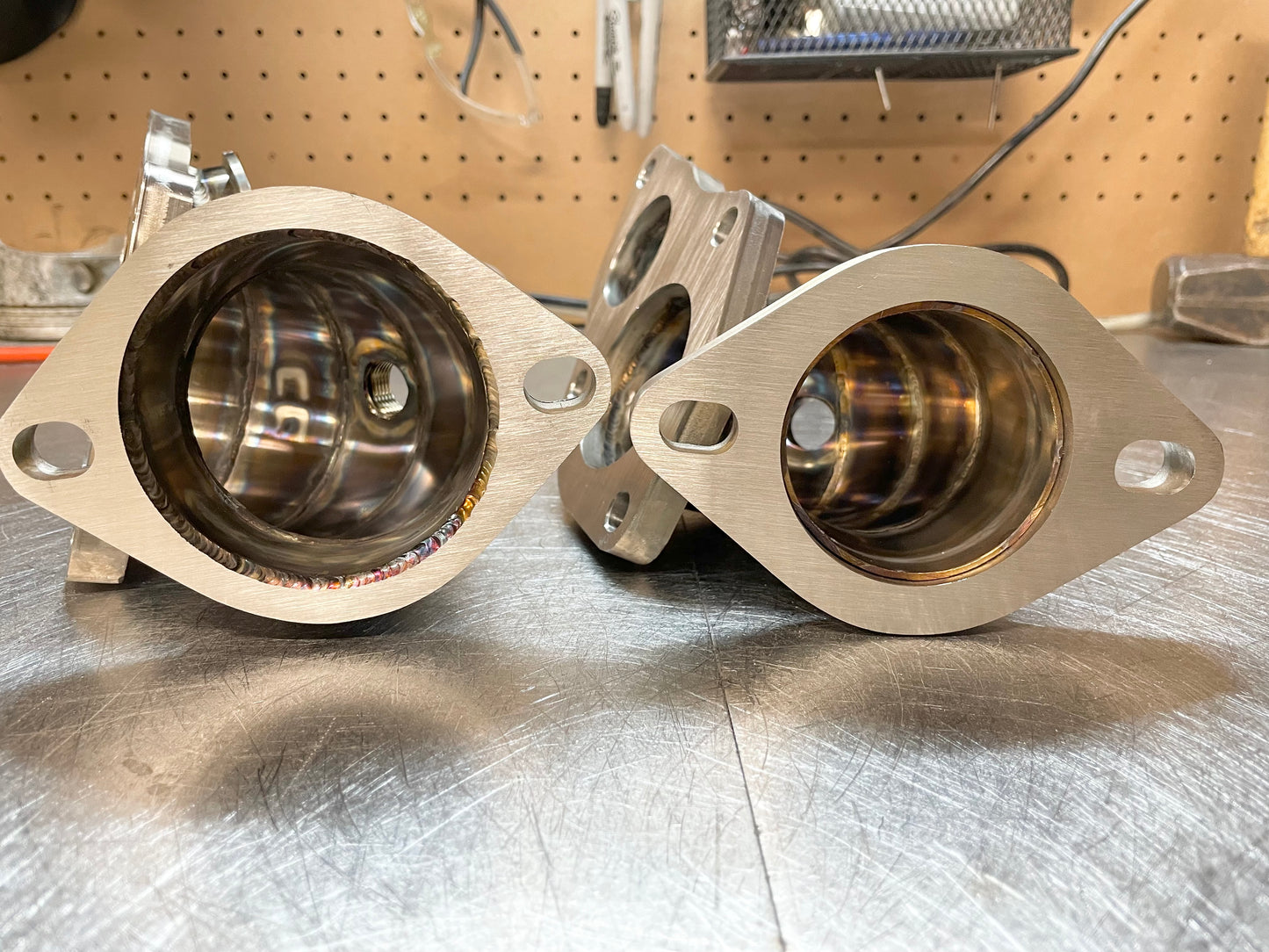

Utilizes 1/2" thick stainless steel flanges.

Tig welded and back purged.

Comes with a wastegate dump tube.

Fits both FWD and AWD models.

Includes new hardware and gasket for the downpipe connection.

Highly recommend a downpipe with a 3" entry flange to maximize performance.

*These are built to order, please check the home page for current build time. Times are subject to change.*

*If ordered with new wastegate, please message what color is wanted*

Care Instructions

To ensure cleanliness of the part, wipe down with acetone after installation to remove any dirt or grease.
